Sikky Stage 2 Hyundai Genesis Coupe LS Swap Package (w/ Headers)

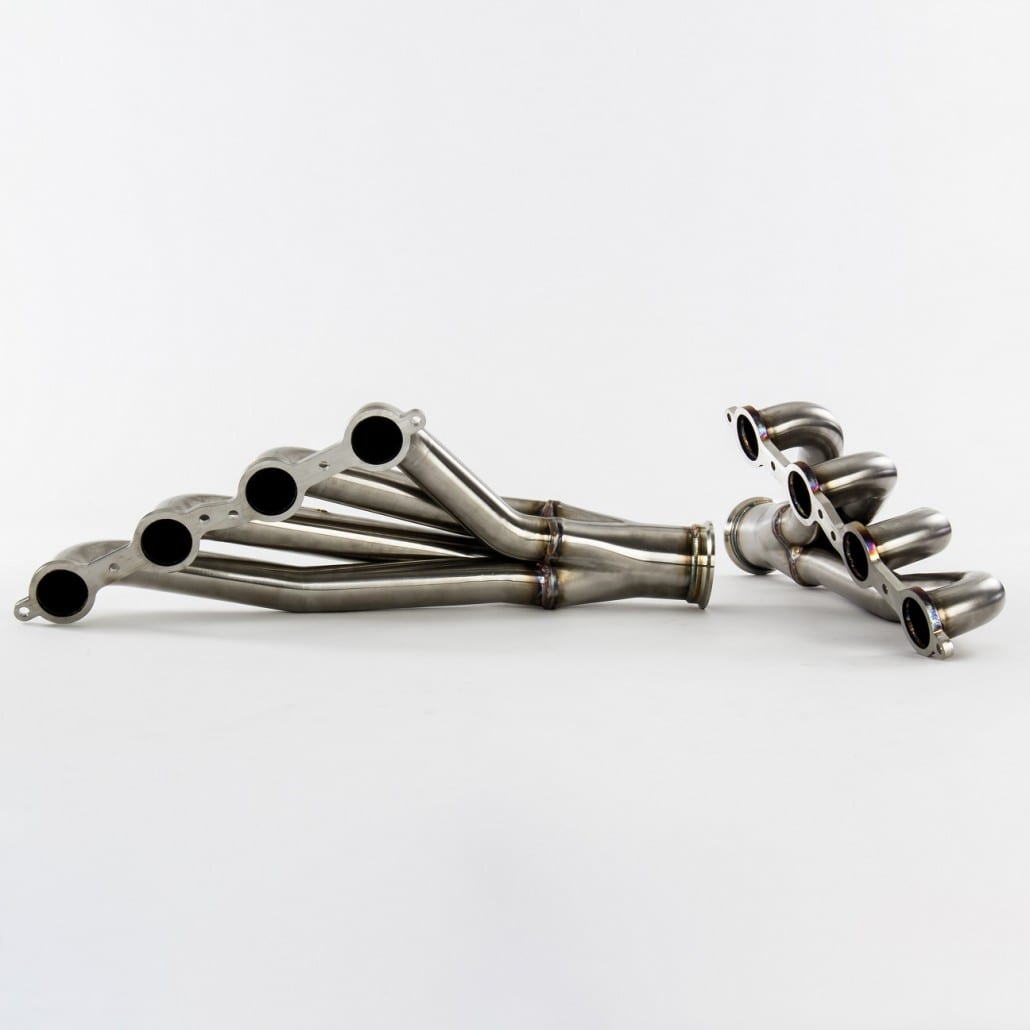

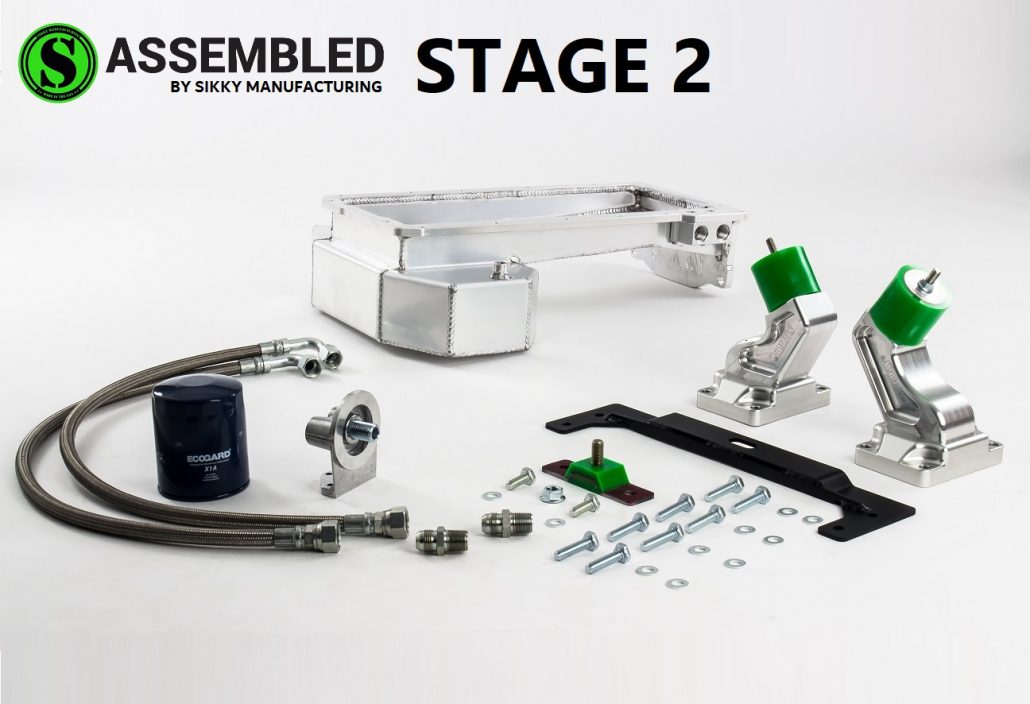

This Stage 2 kits includes most components needed to mount your engine into your Genesis Coupe. This consists of Sikky’s industry leading motor mounts, trans mount, oil pan, driveshaft, and headers. Optional add-ons are available to make your swap a little easier.

Fitment Notes:

• Designed to fit perfectly in the Hyundai Genesis when using all Sikky made components
• Requires no modifications to the factory subframe and does not hang below the cross member when installed
• Can be used on LS1, LS2, LS3, LS6, L99, LQ4, LQ9, LSA, LS7, LS9, LSX and any other LS based engine using this engine mount and oil pan bolt pattern

• Designed to fit perfectly around the front sub frame of the Hyundai Genesis
• To ensure proper fitment use with Sikky Mount kit
• High capacity 6” deep front sump design with side kick outs for maximum oil capacity
• 1/2” thick CNC machined 6061 Billet Aluminum Flange and back plate
• Turbo oil drain bungs on left and right sides of pan kickouts
• 1/8” NPT oil temperature bung
• Machined gasket surface to ensure no gasket leaks
• Rigid design like the OEM GM pan to ensure maximum strength and durability
• Included back plate compatible with factory dust covers to prevent debris entering the bell housing
• High ground clearance design keeps the pan from hanging out the bottom of the car
• High capacity 8 quart sump (does not include oil filter or oil filter relocation)
• Comes with pan mounted side port remote oil filter adapter, dipstick assembly including tube, magnetic drain plug and hardware Kit (Pan install utilizes some factory hardware not included)
