Description
This Stage 1 package includes the basic components needed to mount your engine into your Lexus SC400. This consists of Sikky’s industry leading motor mounts, trans mount, oil pan and driveshaft and is ideal for those who wishes to design their own fuel line kit, intake, stainless steel headers etc.

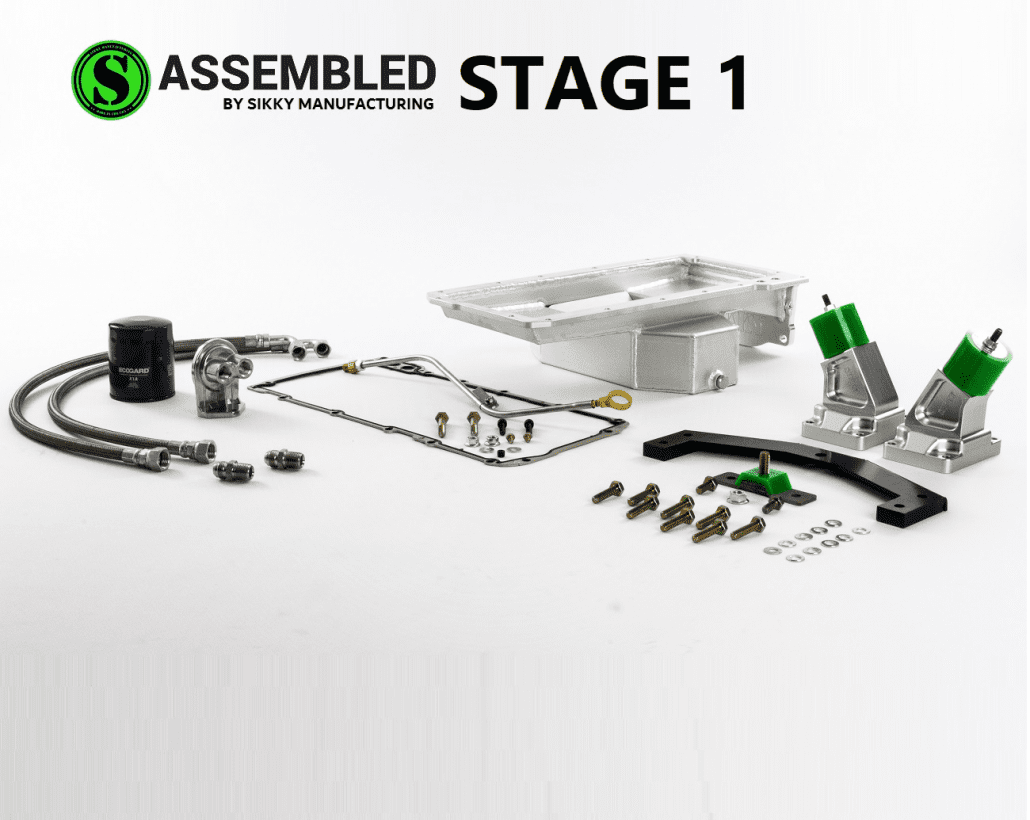

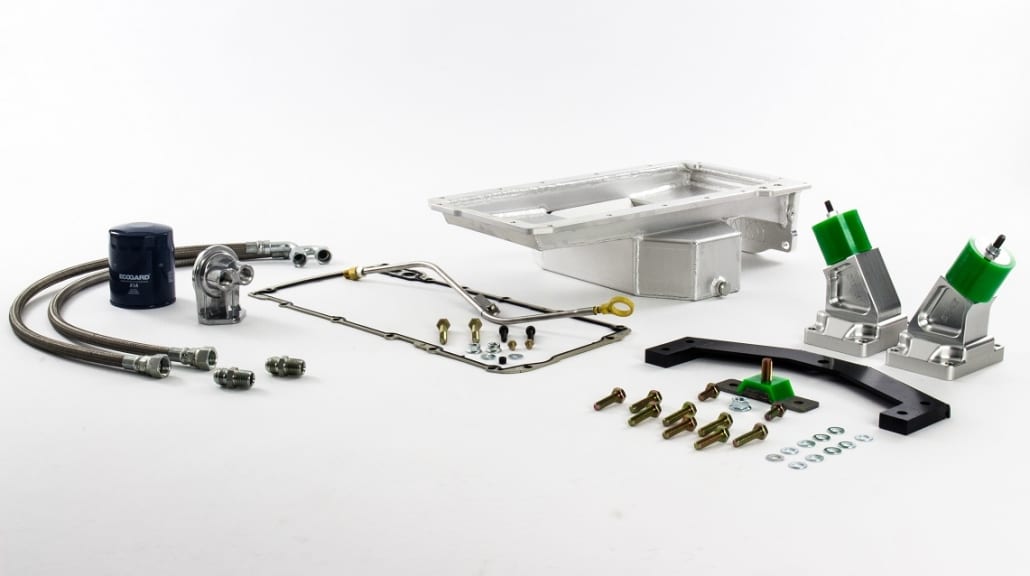

Stage 1 Package Includes:

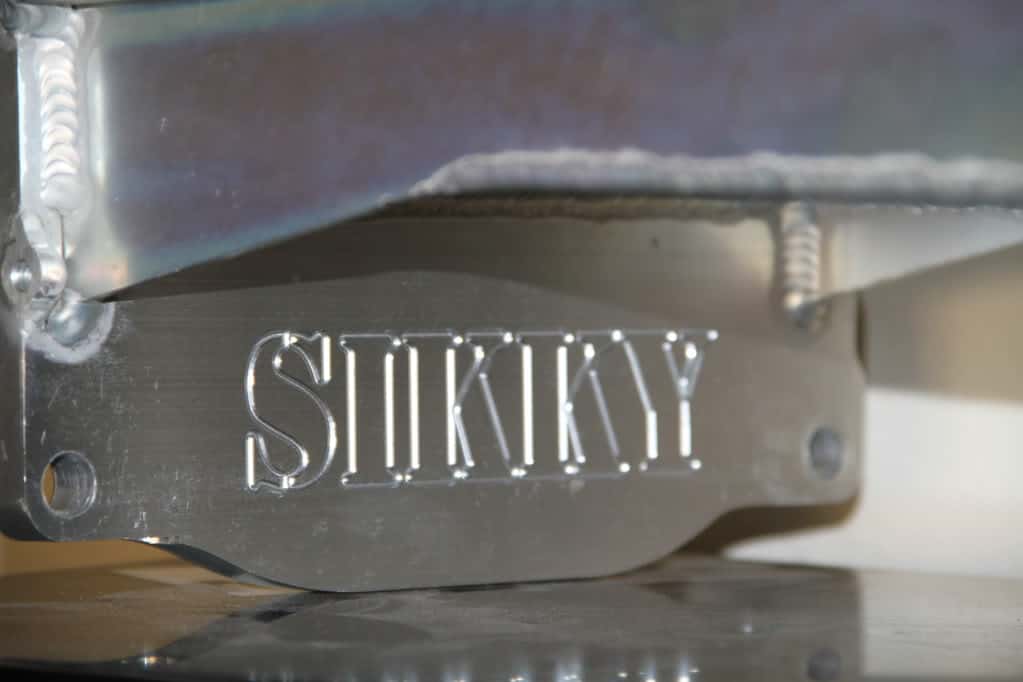

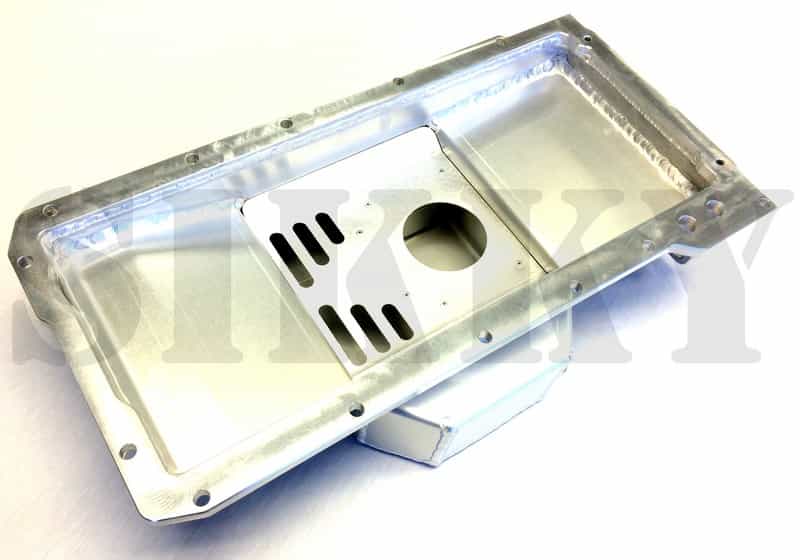

Aluminum Race Oil Pan
- Designed to fit perfectly around the front sub frame of the Toyota Supra and Lexus SC300 when using Sikky mounts
- High capacity 5 1/2” deep front sump design with side kick outs for maximum oil capacity
- 1/2” thick CNC machined 6061 Billet Aluminum Flange and back plate
- Machined gasket surface to ensure no gasket leaks
- Rigid design like the OEM GM pan to ensure maximum strength and durability
- Included back plate compatible with factory dust covers to prevent debris entering the bell housing
- High ground clearance design keeps the pan from hanging out the bottom of the car
- High capacity 5.5 quart sump (does not include oil filter or oil filter relocation)
- Comes with pan mounted side port remote oil filter adapter, magnetic drain plug and hardware Kit (utilizes some factory hardware not included).
- F-Body Camaro Pickup Tube and gasket sold separately
Remote mount filter Kit
- -10 AN Fittings (4) and Stainless Braided Lines (2)
- Remote Oil Filter Base
- High Quality Oil Filter
- All Fittings and Hardware
Engine Mounts
- CAD/CAM Designed CNC Machined Solid 6061 T-6 Aluminum Mounts
- Custom Urethane Bushings with True Isolation
- High Grade Hardware Kit
- Proper Engine Placement and Axle Alignment
- Lifetime Warranty on Engine Mounts
Trans Mount
- CAD/CAM Designed CNC Machined Solid 6061 T-6 Aluminum Mount
- CNC Bent Steel Mount Bracket
- Urethane Bushing
- High Grade Hardware Kit
- Designed for use with the T56 or T56 Magnum
- Lifetime Warranty on Transmission Mount
Driveshaft
- Steel One Piece Driveshaft with High Strength 1310 U-joints (aluminum upgrade available)
- Designed for Use with the T56 Transmission
Oil Pan Installation
