Description
This Stage 2 packages includes the basic components needed to mount your engine into your BMW E39. This consists of Sikky’s industry leading motor mounts, trans mount, stainless steel headers, and oil pan and is ideal for a do-it-yourself type who wants to source or fabricate their own headers, wiring etc.
Fitment Notes:
- Designed to work with left hand drive (LHD) vehicles only.
- Can be used on LS1, LS2, LS3, LS6, L99, LQ4, LQ9, LSA, LS7, LS9, LSX and any other LS based engine using this engine mount and oil pan bolt pattern.
- Transmission and Shifter- This kit is developed to work with both the T56, T56 Magnum, Tr6060 and CD009 transmissions.
- Requires no modifications to the factory front sub frame.
- Works with only i6 front subframe and suspension, if you have a 540 you will need to swap these parts out as the steering gear box and subframe do not work with our kit.

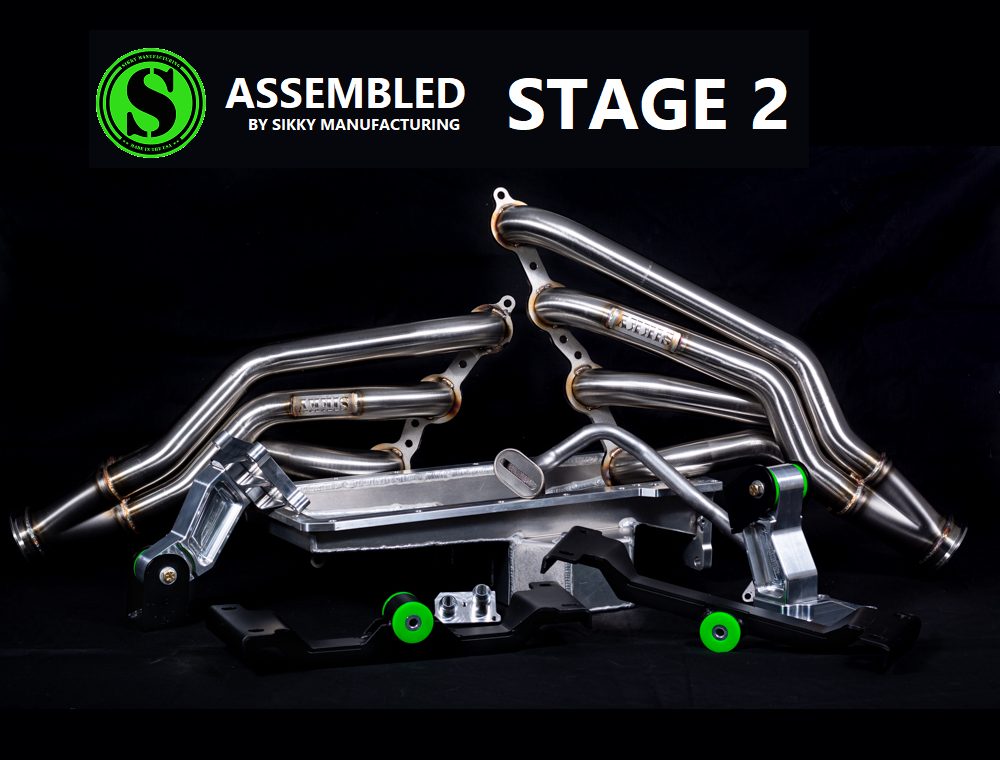

Stage 2 package details:
Aluminum Race Oil Pan
- Designed to fit perfectly around the front sub frame of the BMW E3 5 Series chassis when using a Sikky mount kit
- High capacity 5 1/2” deep front sump design with side kick outs for maximum oil capacity
- 1/2” thick CNC machined 6061 Billet Aluminum Flange and back plate
- Machined gasket surface to ensure no gasket leaks
- Rigid design like the OEM GM pan to ensure maximum strength and durability
- Included back plate compatible with factory dust covers to prevent debris entering the bell housing
- High ground clearance design keeps the pan from hanging out the bottom of the car
- High capacity 5 quart sump (does not include oil filter or oil filter relocation)
- Comes with Pan mounted bottom port remote oil filter adapter, Magnetic drain plug and Hardware Kit (utilizes some factory hardware not included).
- F-Body Camaro Pickup Tube and new OEM gasket sold separately
Remote mount filter Kit
- -10 AN Fittings (4) and Stainless Braided Lines (2)
- Remote Oil Filter Base
- High Quality Oil Filter
- All Fittings and Hardware
Engine Mounts
- CAD/CAM Designed CNC Machined Solid 6061 T-6 Aluminum Mounts
- Custom Urethane Bushings with True Isolation
- High Grade Hardware Kit
- Proper Engine Placement and Axle Alignment
- Lifetime Warranty on Engine Mounts
Trans Mount
- CAD/CAM Designed CNC Machined Solid 6061 T-6 Aluminum Mount
- CNC Bent Steel Mount Bracket
- Urethane Bushing
- High Grade Hardware Kit
- Lifetime Warranty on Transmission Mount
Headers
- 1 7/8″ Primaries, 3″ Collector, Stainless Steel
- V-Band Flange Pre-Installed (clamp and other half included)
- Includes New Gaskets and Bolts
